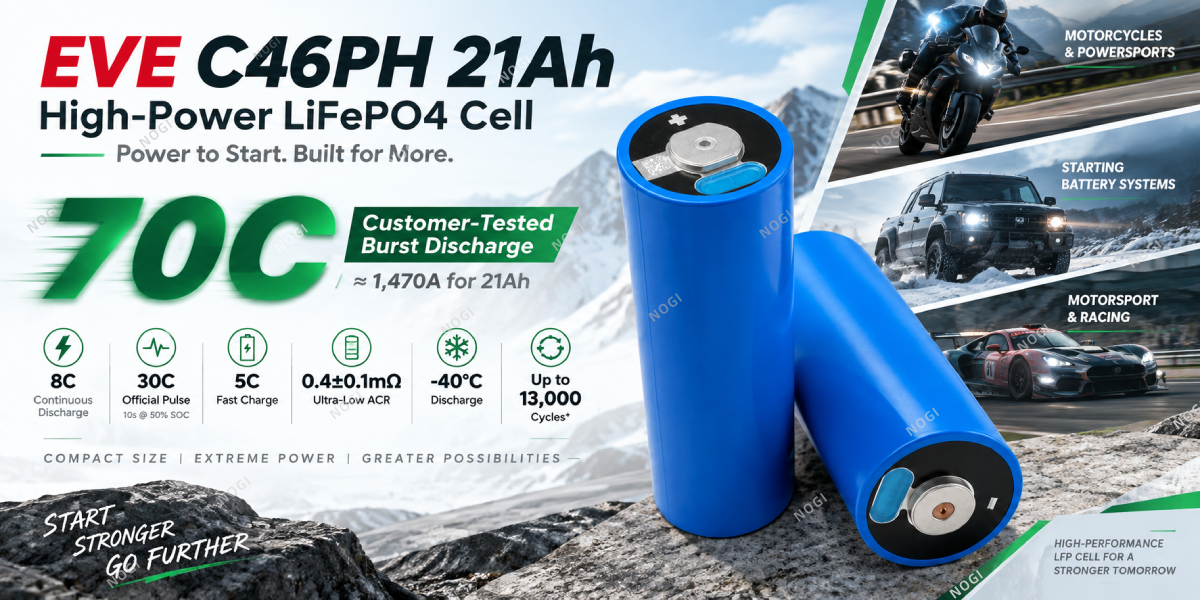

The EVE C46PH 21Ah is a compact high-power cylindrical LiFePO4 cell designed for applications requiring strong current output, fast charging and reliable low-temperature performance.
It supports 8C maximum continuous discharge and an official 30C pulse discharge rating for 10 seconds, while real-world customer testing has demonstrated burst discharge performance up to 70C.
With an initial ACR of only 0.4±0.1mΩ, maximum continuous charging up to 5C, discharge operation down to -40°C, and long cycle performance, the C46PH is particularly suitable for starting batteries, high-performance motorcycles, motorsport systems and other high-power battery packs.
Its compact Ø46.8 × 146.4mm cylindrical format also makes it an attractive choice for projects where high current capability and installation space are both important.
1.Basic Parameters
| Brand | EVE |
| Battery Type | C46PH-V1.1 |
| Chemistry | LiFePO4 (LFP) |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 21Ah |
| Minimum Energy | 67.2Wh |
| Working Voltage | 2.5–3.7V (>0°C) / 2.0–3.7V (≤0°C) |
| Max. Continuous Charge | 5C/ 105A at 25°C |
| Max. Pulse Charge | 20C / 420A, 10s |
| Max Discharge Current | 8C / 168A at 25°C |
| Peak Discharge Current | 30C / 630A, 10s |
| Customer-Tested Burst | Up to 70C |
| Internal Resistance | ≈0.4mΩ |
| Charge Temperature | -30-65℃ |
| Discharge Temperature | -40~65℃ |
| Storage Temperature | −20~55℃ |
| Cycle Life | 13,000 Cycles ≥70% |
| Battery Size | φ46.8*146.4mm |
| Battery Weight | 0.51kg |
| Warranty | 2 Years |
Q: Can you provide the 70C test information?
A: Yes. Relevant customer test information can be provided for reference when evaluating the C46PH for starting and other high-current applications.
Q: Can the C46PH work in cold environments?
A: EVE specifies a discharge operating temperature down to -40°C. Actual high-current performance at very low temperatures depends on SOC, current demand, cell temperature and complete pack design.
Q: Can I order C46PH cells for testing first?
A: Yes. Please send us your required quantity and application. Sample orders can be discussed for cell evaluation and battery pack development.
Q: Can you provide voltage and internal resistance matching?
A: Yes. Voltage and internal resistance testing and matching can be provided according to project requirements before shipment.
Q: Can NOGIPower support a custom starting battery project?
A: Yes. Please provide your system voltage, required starting current, continuous current, available installation space and quantity so we can evaluate the appropriate cell configuration.
Q: Do you provide international shipping?
A: Yes. International shipping options, including DDP service to supported destinations, can be discussed according to order quantity and destination.
